Joint 45x45 support (offset)

Cette combinaison n'existe pas.

Ajouter au panier

Référence interne: 3842543404

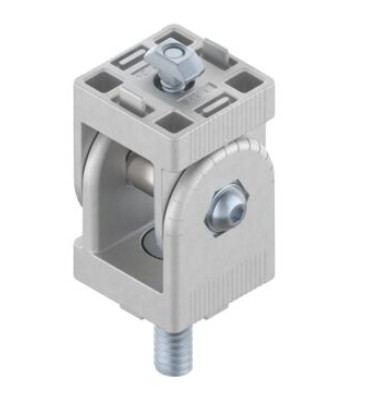

Joint 45x45 standard support

For movable or rigid profile connections at any angle
Swivel range 180°
With marking in 15° increments

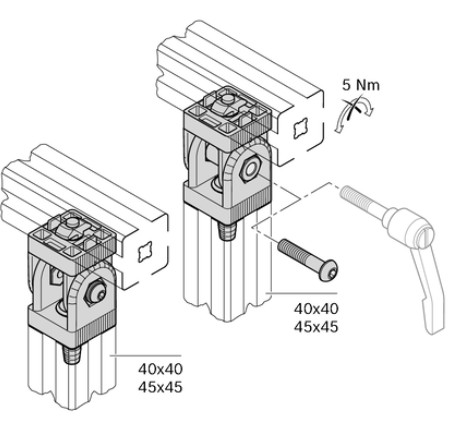

Clamping and convenient adjustment of “support” joint using a clamping lever (5 Nm)

Modular dimension [mm]

Profile slot

ESD

Yes

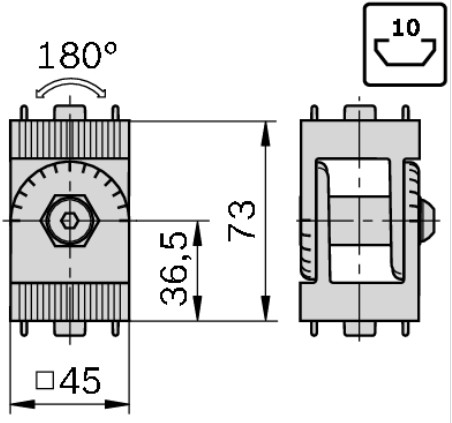

Dimensions

45x45

Swivel range [°]

180

Packaging unit

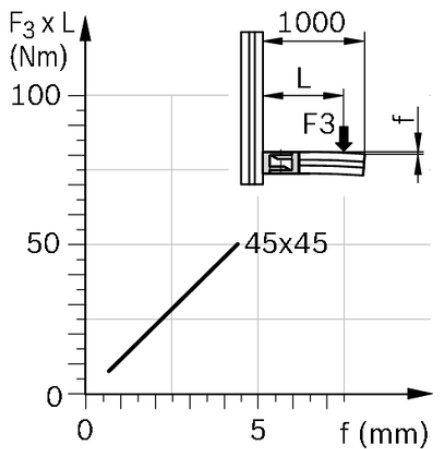

Force F1 [N]

15000

Force F2 [N]

1000

Scope of delivery

Incl. fastening material

Material information

Fastening material: Steel, galvanized Joint: Diecast aluminum

Material

Diecast aluminum

Fastening material

2x T-nut groove 10 M8 2x flange head screw M8x16 2x screw S12x30

Recommended accessories

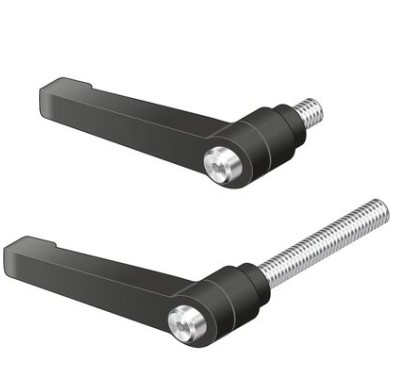

Clamping lever: 3842538607

Weight [kg]

0.33
