Conveyor series 2200 - 6inch x 72inch (1/2ft x 6ft) - Variable speed - end drive
115VAC 1phase power input
Complete kit for light conveyor including gearmotor, VFD controller, fixed height supports. Ideal for handling of small parts and light loads

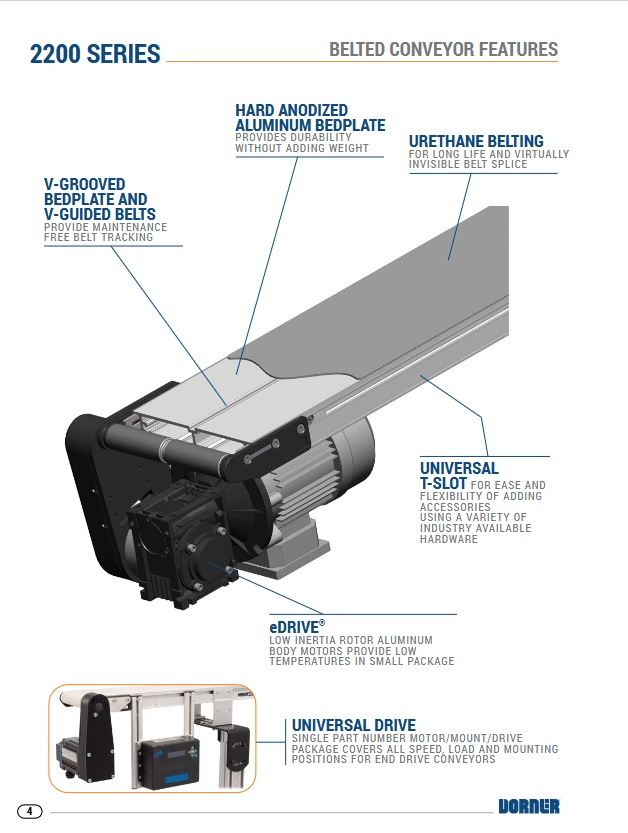

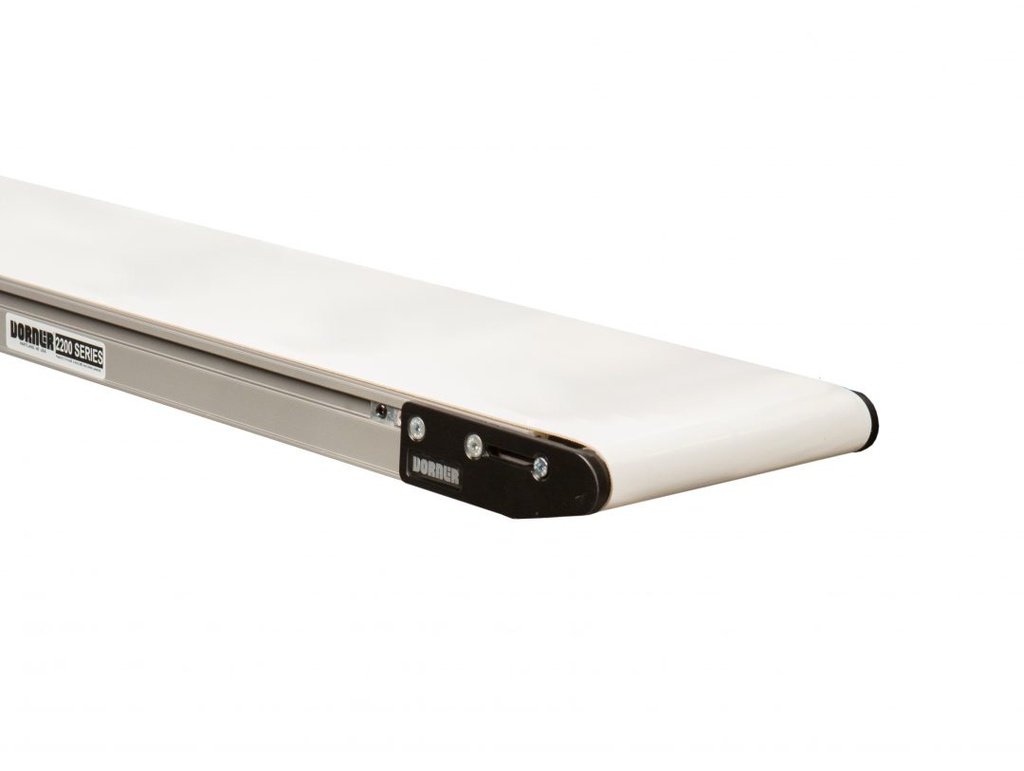

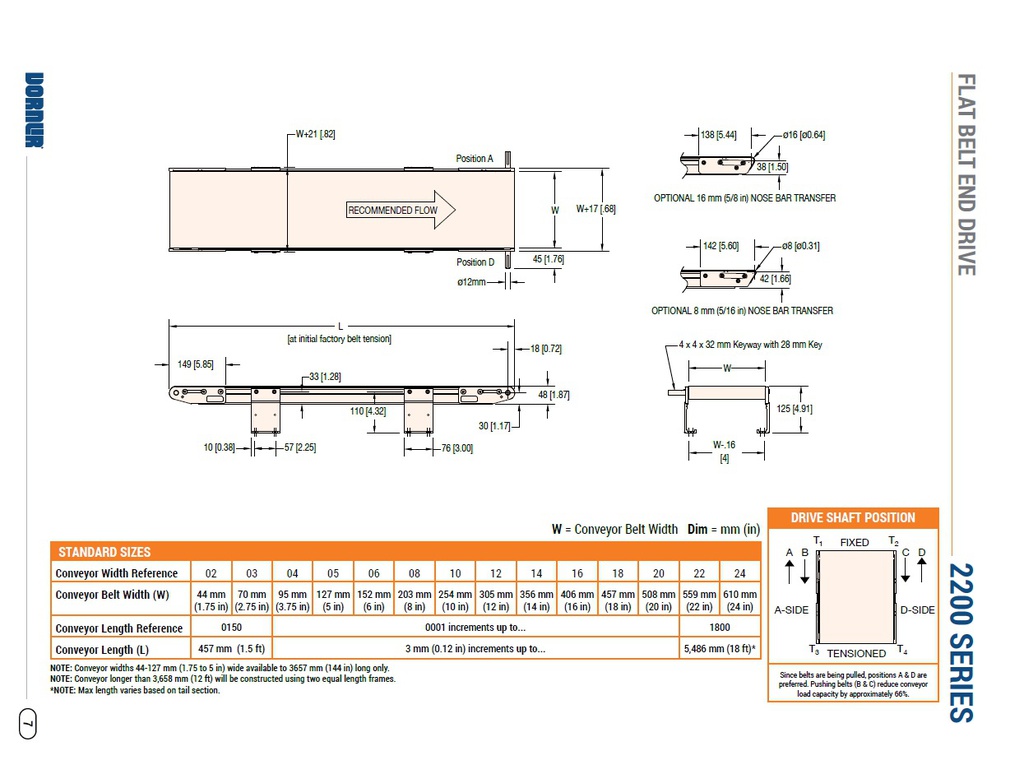

- 2200 Series End Drive conveyor with V-guide belt tracking, 152mm (6in) wide x 1829mm (6.00ft) long, drive shaft in position A with type 01 low side profile on both sides and belt type 02 general purpose, with fused finger splice. Configuration includes standard drive tail and standard idler tail, mounting brackets and belt return rollers
- 2200 Series Light Load Parallel Shaft gearmotor Bottom mount package for a End Drive conveyor, mounted in the A position, 28:28 pulley ratio

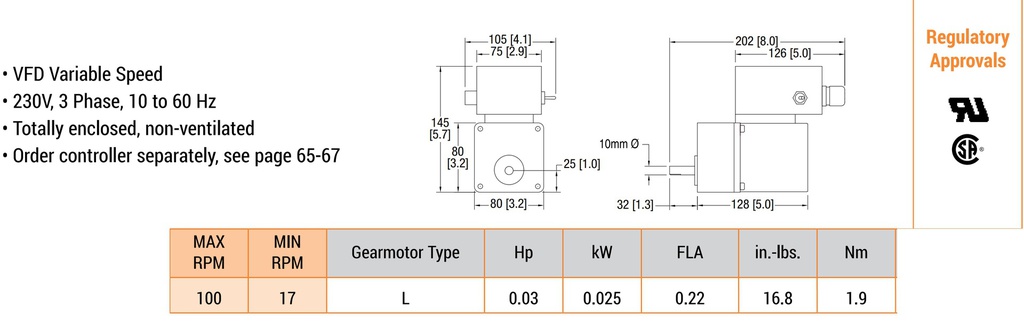

- Light load parallel shaft gearmotor VFD Variable Speed gearmotor, .03 Hp (.02kw), 230 volt, 3 phase, 10-60 Hz, 100 RPM

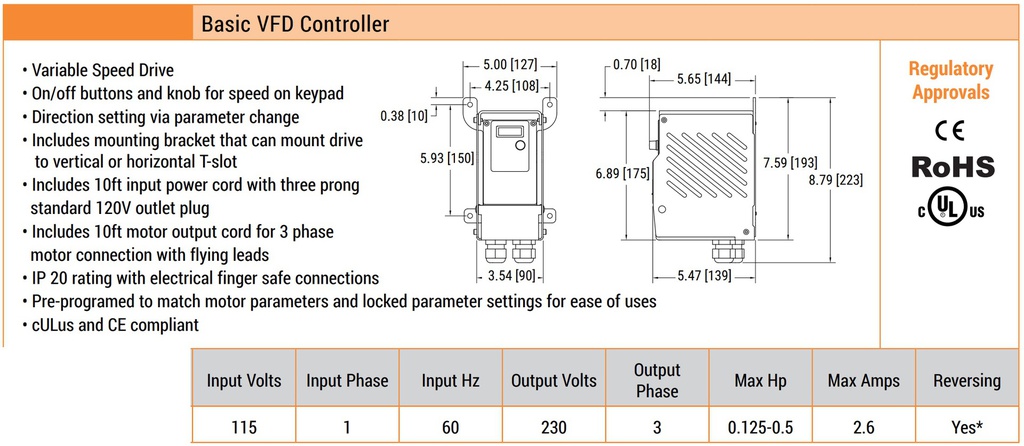

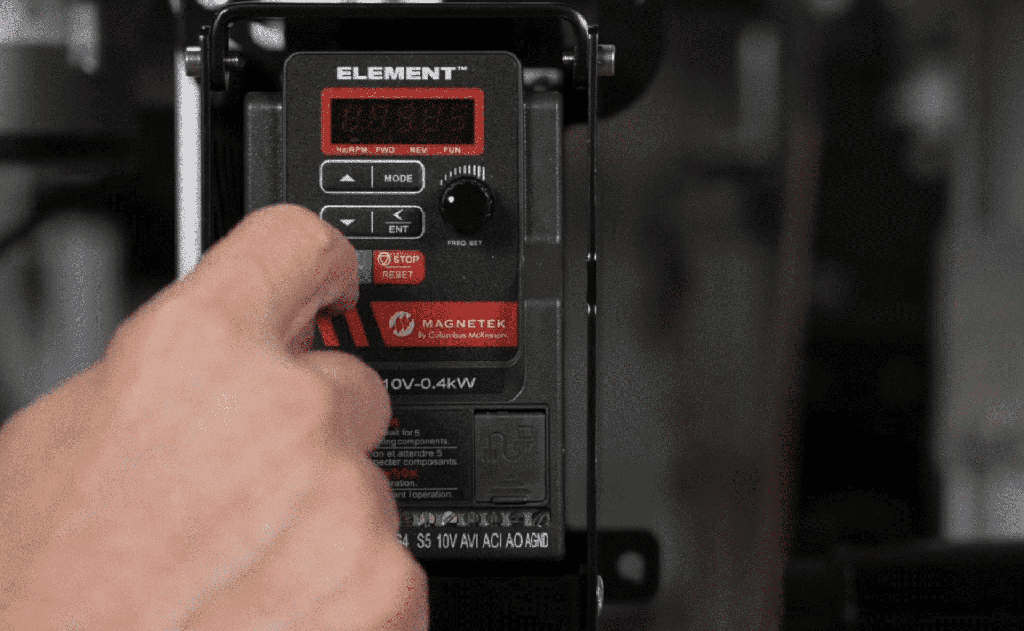

- Variable speed VFD controller, IP 20 enclosure, reversing with parameter change, 115V, 1 phase, 60 Hz input, 230VAC output, 2.6 amp. Requires a non-GFCI power connection.

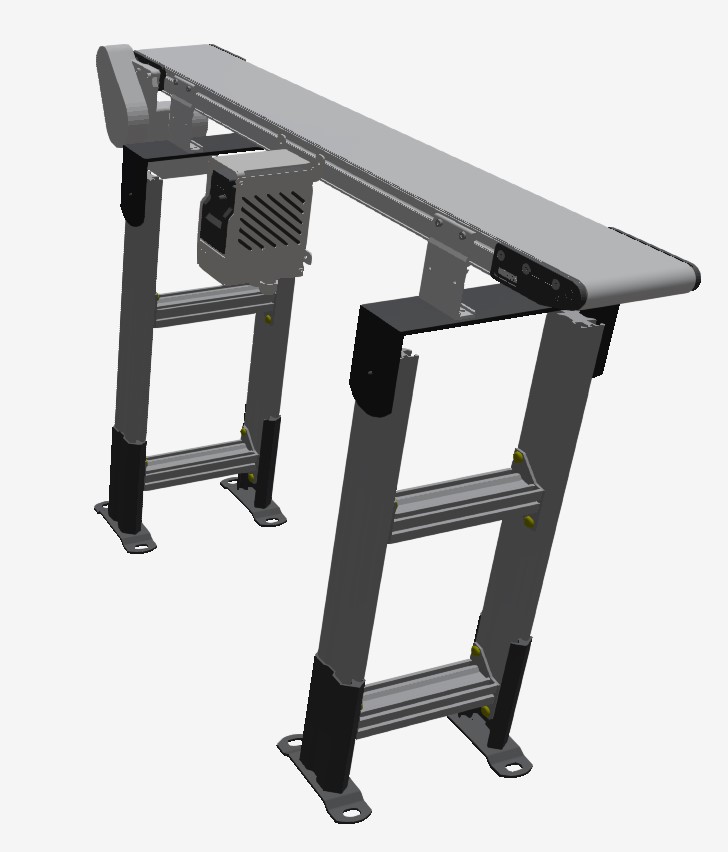

- Fixed Height Stand with Foot Pads for a 152mm (6in) wide conveyor. Stand is adjustable from 736.6mm (29in) to 838.2mm (33in). Stand has a base width of 358.9mm (14.13in).
- Speed range: 3.5 to 35 ft/min
- Maximum load capacity: 19 kg (41.9 lbs) is based on a belt speed of 1.07 to 10.7 m/min (3.51 to 35.1 ft/min), a conveyor incline of 0°, and a uniformly distributed load with no accumulation
- Optional standard duty version for a maximum load capacity of 27kg (59.5 lbs)
