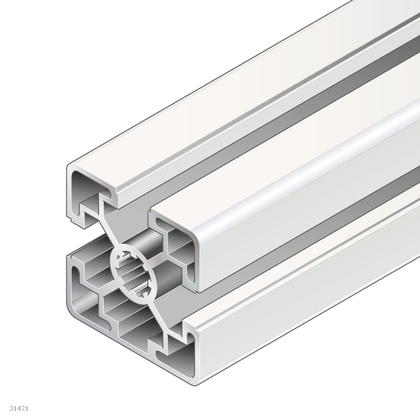

Profile 45x45L 3N L=6170

Condition on delivery

Single rod in standard length

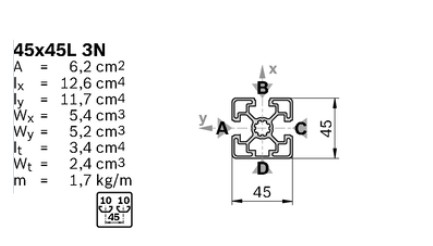

Cross-section

45x45L 3N

Modular dimension [mm]

45

Profile slot

10

ESD

Yes

Dimensions

45x45

Open slots

3.0

Profile type

3N

Color

Natural

Packaging unit

1

Mass [m] [kg]

1.7

Area moment of inertia in x-direction [lx] [cm⁴]

12.6

Area moment of inertia in y-direction [ly] [cm⁴]

11.7

Profile surface [A] [cm²]

6.2

Moment of resistance in the x-direction [Wx] [cm³]

5.4

Moment of resistance in the y-direction [Wy] [cm³]

5.2

Torsional moment of inertia [It] [cm⁴]

3.4

Moment of torsion resistance [Wt] [cm³]

2.4

Length [L]

6070.0

Material

Aluminum, anodized

Recommended accessories

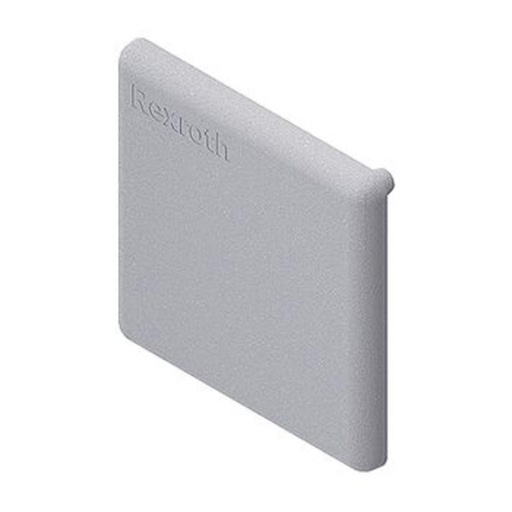

Cover cap 45x45, black Cover cap 45x45, signal gray Cover cap 45x45-ZN Cover cap with hole 45x45, black Cover cap with hole 45x45, signal gray

Weight [kg]

10.2
