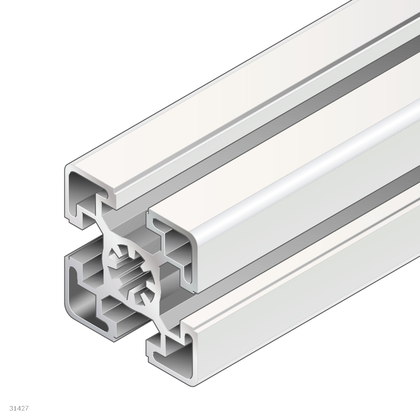

Profile 45x45H L=6070-6170mm long

Condition on delivery

Single rod in standard length

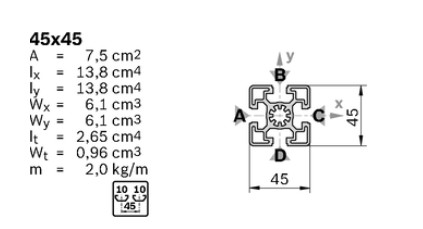

Cross-section

45x45

Modular dimension [mm]

45

Profile slot

10

ESD

Yes

Dimensions

45x45

Open slots

4.0

Profile type

Standard

Color

Natural

Packaging unit

1

Mass [m] [kg]

2

Area moment of inertia in x-direction [lx] [cm⁴]

13.8

Area moment of inertia in y-direction [ly] [cm⁴]

13.8

Profile surface [A] [cm²]

7.5

Moment of resistance in the x-direction [Wx] [cm³]

6.1

Moment of resistance in the y-direction [Wy] [cm³]

6.1

Torsional moment of inertia [It] [cm⁴]

2.65

Moment of torsion resistance [Wt] [cm³]

0.96

Length [L]

6070.0

Material

Aluminum, anodized

Recommended accessories

Cover cap 45x45, black Cover cap 45x45, signal gray Cover cap with hole 45x45, black Cover cap with hole 45x45, signal gray

Weight [kg]

12.3
