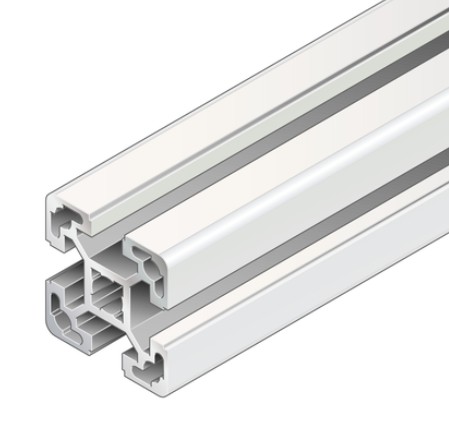

Profile 40x40L, L=6070-6170mm long

Condition on delivery

Single rod in standard length

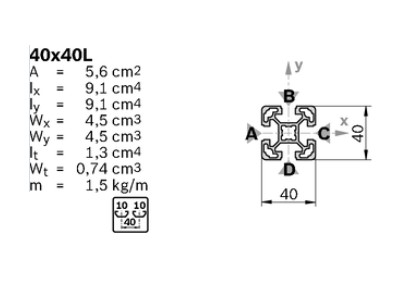

Cross-section

40x40L

Modular dimension [mm]

40

Profile slot

10

ESD

Yes

Dimensions

40x40

Open slots

4.0

Profile type

Standard

Color

Natural

Packaging unit

1

Mass [m] [kg]

1.5

Area moment of inertia in x-direction [lx] [cm⁴]

9.1

Area moment of inertia in y-direction [ly] [cm⁴]

9.1

Profile surface [A] [cm²]

5.6

Moment of resistance in the x-direction [Wx] [cm³]

4.5

Moment of resistance in the y-direction [Wy] [cm³]

4.5

Torsional moment of inertia [It] [cm⁴]

1.3

Moment of torsion resistance [Wt] [cm³]

0.74

Length [L]

6070.0

Material

Aluminum, anodized

Recommended accessories

Cover cap 40x40, black Cover cap 40x40, signal gray Cover cap with hole 40x40, black Cover cap with hole 40x40, signal gray

Weight [kg]

9.01
