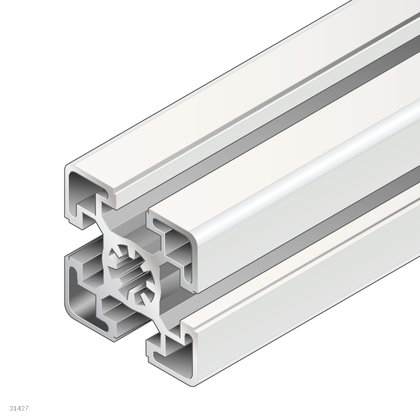

Profile 45x45H, Custom length

This combination does not exist.

Add to Cart

Cut to	100mm or 200mm or 300mm or 400mm or 500mm or 600mm or 700mm or 800mm or 900mm or 1000mm or 1100mm or 1200mm or 1300mm or 1400mm or 1500mm or 1600mm or 1700mm or 1800mm or 1900mm or 2000mm or 2100mm or 2200mm or 2300mm or 2400mm or 2500mm or 2600mm or 2700mm or 2800mm or 2900mm or 3000mm or 3100mm or 3200mm or 3300mm or 3400mm or 3500mm or 3600mm or 3700mm or 3800mm or 3900mm or 4000mm or 4100mm or 4200mm or 4300mm or 4400mm or 4500mm or 4600mm or 4700mm or 4800mm or 4900mm or 5000mm or 5100mm or 5200mm or 5300mm or 5400mm or 5500mm or 5600mm or 5700mm or 5800mm or 5900mm or 6000mm or 6100mm

Strut profile 45x45

Condition on delivery	Variable length
Cross-section	45x45
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x45
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	2
Area moment of inertia in x-direction [lx] [cm⁴]	13.8
Area moment of inertia in y-direction [ly] [cm⁴]	13.8
Profile surface [A] [cm²]	7.5
Moment of resistance in the x-direction [Wx] [cm³]	6.1
Moment of resistance in the y-direction [Wy] [cm³]	6.1
Torsional moment of inertia [It] [cm⁴]	2.65
Moment of torsion resistance [Wt] [cm³]	0.96
Material	Aluminum, anodized
Recommended accessories	Cap with hole 45x45, black Cover cap 45x45, black Cover cap 45x45, signal gray Cover cap with hole 45x45, signal gray
Weight [kg]	0
