Technical Specs
Product
attributes
Condition
on delivery

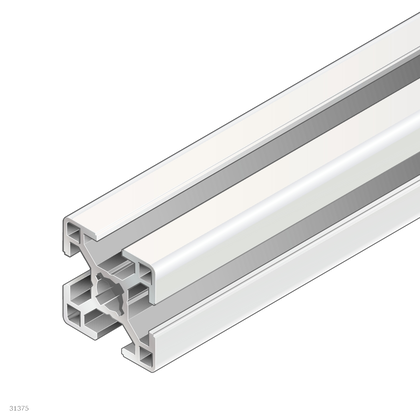

Single rod in standard length
Cross-section
30x30
Modular
dimension [mm]
30
Profile
slot
8
Dimensions
30x30
Open
slots
4.0
Profile
type
Standard
Color
Natural
Packaging
unit
1
Mass
[m] [kg]
0.9
Area moment of inertia in x-direction [lx] [cm⁴]
2.8
Area moment of inertia in y-direction [ly] [cm⁴]
2.8
Profile
surface [A] [cm²]
3.1
Moment of resistance in the x-direction [Wx] [cm³]
1.8
Moment of resistance in the y-direction [Wy] [cm³]
1.8
Torsional
moment of inertia [It] [cm⁴]
0.29
Moment
of torsion resistance [Wt] [cm³]
0.33
Length
[L]
6070.0
Material
Aluminum,
anodized
Recommended
accessories
Cover
cap 30x30, black Cover cap 30x30, signal gray

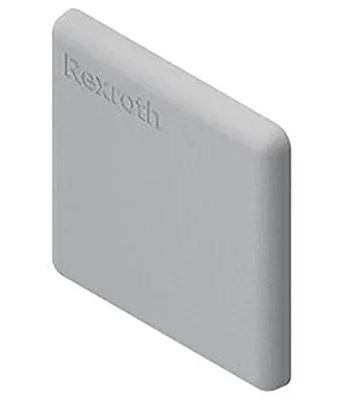

![[3842548744] Cap cover 30x30, Grey](/web/image/product.product/44539/image_512/%5B3842548744%5D%20Cap%20cover%2030x30%2C%20Grey?unique=7e4c7a4)

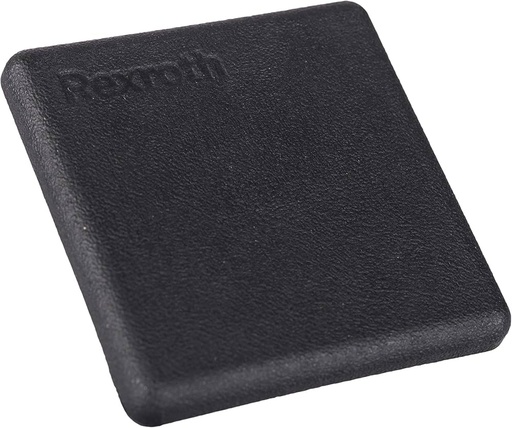

![[3842548745] Cap cover 30x30, ESD Black](/web/image/product.product/44536/image_512/%5B3842548745%5D%20Cap%20cover%2030x30%2C%20ESD%20Black?unique=19ad226)
