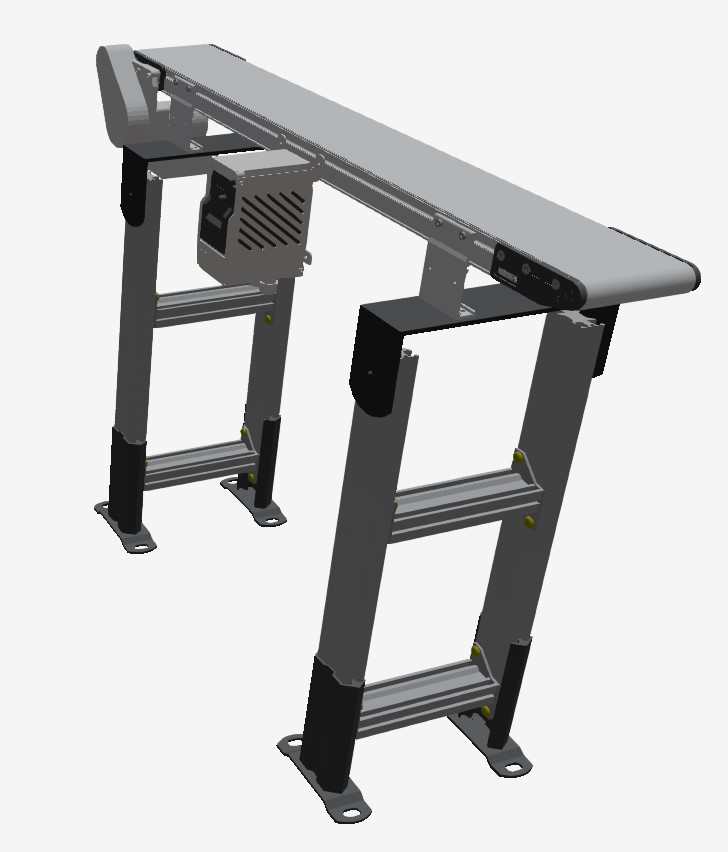

Conveyor
series 2200 - 6inch x 72inch (1/2ft x 6ft) - Variable speed - end drive
115VAC
1phase power input
Complete
kit for light conveyor including gearmotor, VFD controller, fixed height
supports. Ideal for handling of small parts and light loads
- 2200
Series End Drive conveyor with V-guide belt tracking, 152mm (6in) wide x 1829mm
(6.00ft) long, drive shaft in position A with type 01 low side profile on both
sides and belt type 02 general purpose, with fused finger splice. Configuration
includes standard drive tail and standard idler tail, mounting brackets and
belt return rollers
- 2200
Series Light Load Parallel Shaft gearmotor Bottom mount package for a End Drive
conveyor, mounted in the A position, 28:28 pulley ratio
- Light
load parallel shaft gearmotor VFD Variable Speed gearmotor, .03 Hp (.02kw), 230
volt, 3 phase, 10-60 Hz, 100 RPM
- Variable
speed VFD controller, IP 20 enclosure, reversing with parameter change, 115V, 1
phase, 60 Hz input, 230VAC output, 2.6 amp. Requires a non-GFCI power
connection.
- Fixed
Height Stand with Foot Pads for a 152mm (6in to 12in) wide conveyor. Stand is
adjustable from 736.6mm (29in) to 838.2mm (33in). Stand has a base width of
358.9mm (14.13in).
- Speed
range: 3.5 to 35 ft/min
- Maximum
load capacity: 19 kg (41.9 lbs) is based on a belt speed of 1.07 to 10.7 m/min
(3.51 to 35.1 ft/min), a conveyor incline of 0°, and a uniformly distributed
load with no accumulation
-
Optional standard duty version for a maximum load capacity of 27kg (59.5 lbs)
