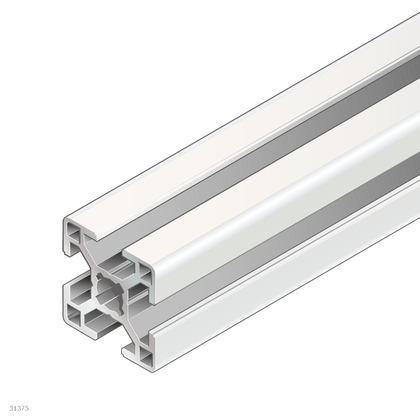

Profile 30x30 L=6070-6170mm

This combination does not exist.

Add to Cart

Internal Reference: 3842557216

Strut profile 30x30

Condition on delivery	Single rod in standard length
Cross-section	30x30
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x30
Open slots	4.0
Profile type	Standard
Color	Natural
Packaging unit	1
Mass [m] [kg]	0.9
Area moment of inertia in x-direction [lx] [cm⁴]	2.8
Area moment of inertia in y-direction [ly] [cm⁴]	2.8
Profile surface [A] [cm²]	3.1
Moment of resistance in the x-direction [Wx] [cm³]	1.8
Moment of resistance in the y-direction [Wy] [cm³]	1.8
Torsional moment of inertia [It] [cm⁴]	0.29
Moment of torsion resistance [Wt] [cm³]	0.33
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 30x30, black Cover cap 30x30, signal gray
Weight [kg]	5.2
