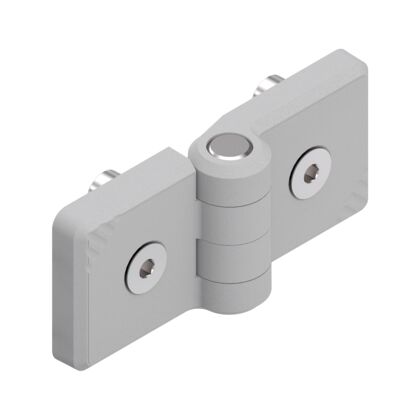

Hinge, PA, 45/45, grey

This combination does not exist.

Add to Cart

Internal Reference: 3842554468

Hinge, plastic P1=45 P2=45

Installation in slot

Assembly possible on solid surface elements

Centering bolts for easy mounting and as an anti-torsion element

Profile slot	10 8
Color	Signal gray (RAL 7004)
Hinge type	Plastic
Packaging unit	2
Dimension A [mm] [mm]	45
Force [Fmax] [N]	150.0
Dimension B [mm] [mm]	45
Dimension b [mm]	25.0
Profile P1 [mm]	45
Profile P2 [mm]	45
Scope of delivery	Incl. fastening material
Material information	Fastening material: Steel, galvanized Hinge axle: Steel, galvanized Hinge: PA
Material	PA
Fastening material	2x T-nut groove 10 M6 2x countersunk screw DIN7991-M6x18
Dimension a [mm] [mm]	25.0
Weight [kg]	0.1
