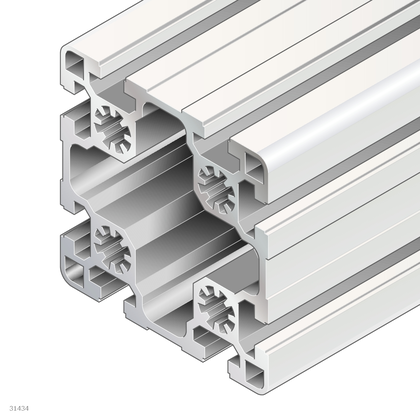

Profile 90x90L, L=6070-6170mm long

Condition on delivery

Single rod in standard length

Cross-section

90x90L

Modular dimension [mm]

45

Profile slot

10

ESD

Yes

Dimensions

90x90

Open slots

8.0

Profile type

Standard

Color

Natural

Packaging unit

1

Mass [m] [kg]

6.5

Area moment of inertia in x-direction [lx] [cm⁴]

211.1

Area moment of inertia in y-direction [ly] [cm⁴]

211.1

Profile surface [A] [cm²]

24.1

Moment of resistance in the x-direction [Wx] [cm³]

46.9

Moment of resistance in the y-direction [Wy] [cm³]

46.9

Torsional moment of inertia [It] [cm⁴]

82.1

Moment of torsion resistance [Wt] [cm³]

20.1

Length [L]

6070.0

Material

Aluminum, anodized

Recommended accessories

Cover cap 90x90L, black Cover cap 90x90L, signal gray

Weight [kg]

40.17
