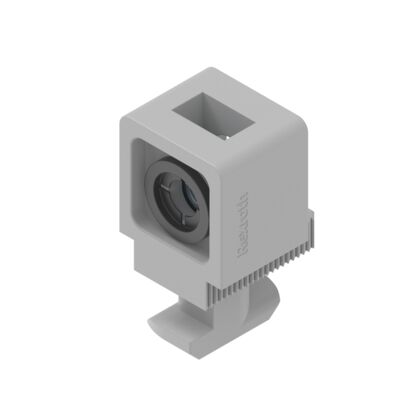

Variofix block N10, grey

This combination does not exist.

Add to Cart

Internal Reference: 3842548834

Variofix block slot 10 PP

For surface elements with a thickness of up to 13 mm
For subsequent installation in closed frame constructions
Asymmetrical form enables surface elements to be fastened in two different positions
Clamping with snap-in clip or screw fitting with square nut M6 (included in scope of delivery) and screw
Retainer ring for connecting the screw to the surface element (Machinery Directive 2006/42/EC)

Product attributes
Profile slot	10
Color	Signal gray (RAL 7004)
Mounting type	Screws Snap-in clip
Packaging unit	10
Scope of delivery	Incl. square nut M6, locking ring M6
Material information	Square nut: Steel, galvanized
Material	PP
Required accessories	Screw M6 for fitting with square nut Variofix remover (3842526589) for snap-in clip
Weight [kg]	0.02

Product attributes

Profile slot

Color

Signal gray (RAL 7004)

Mounting type

Screws Snap-in clip

Packaging unit

Scope of delivery

Incl. square nut M6, locking ring M6

Material information

Square nut: Steel, galvanized

Material

Required accessories

Screw M6 for fitting with square nut Variofix remover (3842526589) for snap-in clip

Weight [kg]

0.02
