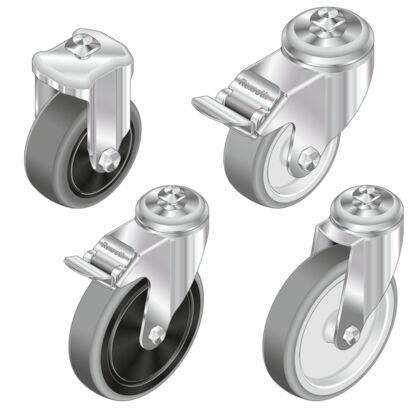

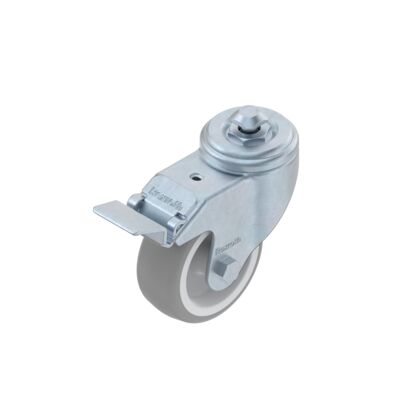

Caster wheel with brake D80 F

This combination does not exist.

Add to Cart

Internal Reference: 3842541226

LR with lock, rubber, F900

Especially gentle on floors
Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω
Versatile range of uses
Wheels with excellent running properties
Mounting of the roller in the profile slot or central hole (accessories required)
Profile finishing: thread cutting M12 in the case of assembly in central hole
LR with lock: lock prevents the wheel from rolling or turning

Profile slot

Packaging unit

Total height [mm]

108.0

Diameter D [mm]

80.0

Dimension [h] [mm]

108.0

Force F [N]

900.0

Material

Thermoplastic rubber

Fastening material

1x hexagon nut DIN985 M12
1x square screw M12x30

Required accessories

Bearing ring if cover cap with hole is used
Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm)

Weight [kg]

0.62
