Quick connector, N10, 0°, zinc plated

https://neo.prod.numigi.net/web/image/product.template/56456/image_1920?unique=d7d17c2

    7.11 CAD 7.11 CAD 7.11 CAD

    7.11 CAD

    This combination does not exist.

    Add to Cart

    Internal Reference: 3842535458

    Conditions générales
    Livraison rapide

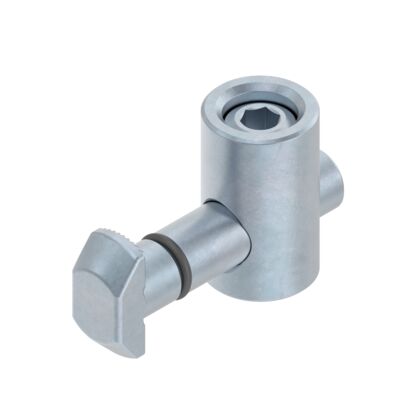

    Product Image
    Quick connector, N10, 0°, zinc plated

    7.11 CAD 7.11 CAD 7.11 CAD

    7.11 CAD

    Add to Cart

    Quick connector 0° steel, galvanized N10

    • For the right-angled connecting of two profiles

    • Very good accessibility for tools during assembly

    • O-ring for fastening allows overhead assembly

    • Quick connectors can be swiveled into the profile slot at the point of assembly

    • Profile finishing: blind hole DI, DB11, DB17 or through-hole DI, D11, D17

    • Note differing drilling intervals and load-bearing capacities when using with radial compensation

    Profile slot

    10

    ESD

    Yes

    Mounting orientation

    0 °

    Head shape

    rectangular

    Diameter D [mm]

    17.0

    Packaging unit

    10

    Bending moment 1 [Nm]

    140.0

    Profile slot P1/P2

    10 / 10

    Material

    Steel, galvanized

    Recommended accessories

    Anti-torsion element Cap Drilling jig Radial compensation

    Weight [kg]

    0.06
