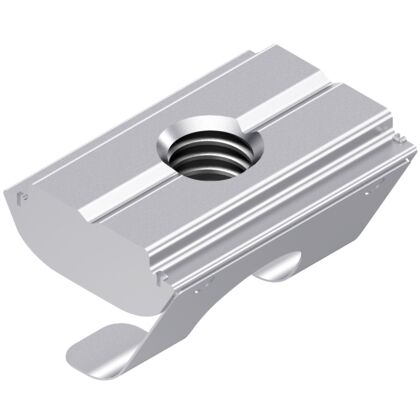

Slide nut, spring block, N10, M6

This combination does not exist.

Add to Cart

Internal Reference: 3842529299

Swivel-in sliding block, with spring groove 10 steel, galvanized M6

The swivel-in sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached springs
Profile finishing: not required

Product attributes
Profile slot	10
ESD	Yes
Swivel-in	Yes
Thread size	M6
Dimension h1 [mm]	1.5
Dimension h [mm]	5.3
Length [l] [mm]	20
Packaging unit	100
Max. groove retention [Fmax] [N]	18000
Min. groove retention [Fmin] [N]	8000
Material information	Spring: Spring steel, stainless Steel, galvanized
Material	Steel, galvanized
Weight [kg]	0.01
