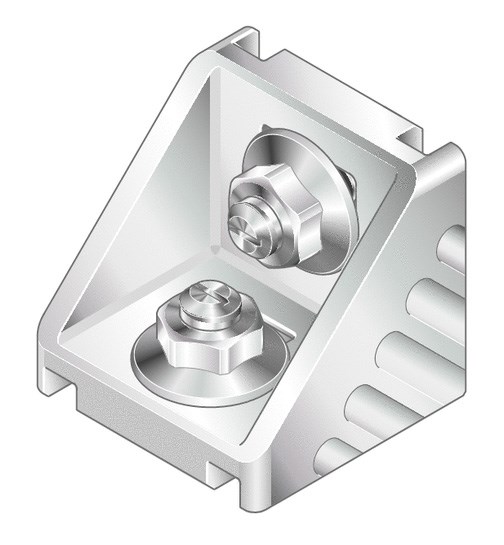

Gusset 45x45 set (with mounting hardware)

This combination does not exist.

Add to Cart

Internal Reference: 3842523561

Product Description

Bracket 45x45 set (standard)

Brackets with centering lugs for rapid, precise assembly with protection against turning
Centering lugs can be easily broken off for assembly on plates or at right angles to the slot
Sliding block offset for off-center positioning of the 45/45 bracket
Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)
Profile finishing: not required

Technical Specs

Product attributes
Profile slot	10
ESD	Yes
Dimensions	45x45
Fastening material included	Yes
Bending moment 1 [Nm]	60.0
Bending moment 2 [Nm]	160.0
Scope of delivery	Bracket (standard) incl. fastening material (FS)
Material information	Bracket: Diecast aluminum, vibratory ground Fastening material: Steel, galvanized
Material	Diecast aluminum, vibratory ground
Fastening material	2x T-bolt M8x25 2x flange nut M8
Recommended accessories	Cover cap for bracket 45x45, black (3842548863) Cover cap for bracket 45x45, signal gray (3842548862) Sliding block, offset (3842523593)
Weight [kg]	0.11
