Gusset 30x30 set
Pricelist CAD
Pricelist CAD
Liste Prix USD
Gusset 30x30 set
https://neo.prod.numigi.net/shop/3842523528-gusset-30x30-set-55184
https://neo.prod.numigi.net/web/image/product.template/55184/image_1920?unique=1d5a4d5
7.58
CAD
7.58
CAD
7.58
CAD
7.58
CAD
This combination does not exist.
Add to Cart
Add to compare
Add to wishlist
Internal Reference:
3842523528
Conditions générales
Livraison rapide
Gusset 30x30 set
7.58
CAD
7.58
CAD
7.58
CAD
7.58
CAD
Add to Cart
Product Description
Technical Spec

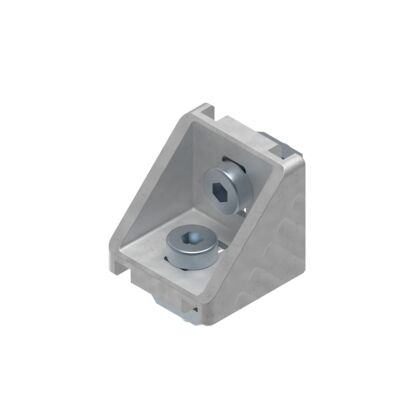

Bracket 30x30 set (standard) slot 8/8
Brackets with centering lugs for rapid, precise assembly with protection against turning
Centering lugs can be easily broken off for assembly on plates or at right angles to the slot
Intermediate element for positioning brackets in the next largest slot
Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)
Profile finishing: not required
Profile slot
8
ESD
Yes
Dimensions
30x30
Fastening material included
Yes
Bending moment 1 [Nm]
25.0
Bending moment 2 [Nm]
75.0
Scope of delivery
Bracket (standard) incl. fastening material (FS)
Material information
Bracket: Diecast aluminum, vibratory ground Fastening material: Steel, galvanized
Material
Diecast aluminum, vibratory ground
Fastening material
2x T-nut groove 8 M6 2x cylinder head screw DIN 7984-M6x14
Recommended accessories
Cover cap for bracket 30x30, black (3842548847) Cover cap for bracket 30x30, signal gray (3842548846) Intermediate element for 8 mm slot (3842523516)
Weight [kg]
0.04
Accessory Products

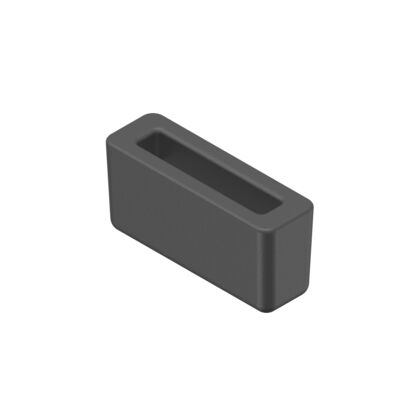

Intermediate element for 8mm slot, 6/8

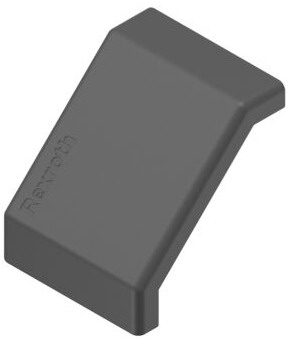

Cap cover gusset 30x30 esd
